Pulley, Idler Wheel, Belt

Belt (Replica):
234435NB
Substitute for Dual Part Numbers:
234435 and 246084
Used in Dual Models (without guarantee):
CS461, CS481, CS502, CS504, CS506 (nicht CS506-1!), CS510, CS521, CS601, CS1236, CS1237, CS1239, CS1241, CS1242, CS1245, CS1246, CS1249

Belt (Replica):
272489NB
Substitute for Dual Part Number:
272489
Used in Dual Models (without guarantee):
SP85, SP120, ASP138, CS410neu, CS415, CS415-1, CS415-2, CS430neu, CS431, CS435, CS440, CS450, CS455, CS455-1, CS458, CS460, CS465, CS503-1, CS503-2, CS511, CS514, CS515, CS520, CS525, CS530, CS540, CS545, CS2110, CS2115, CS2120, CS2125, CS2210, CS2215

Belt (Replica):
283480NB = 6800574NB
Ersatz für Dual Artikelnummer:
283480
Used in the following Dual turntables (ohne Gewähr):
CS3560, CS3600, CS3700

This belt fits also very well for many Thorens turntables
Substitute for Thorens Part Number:
6800574
Used in the following Thorens turntables (without guarantee):
TD125, TD126, TD145, TD146, TD147, TD160, TD165, TD166, TD280 (nicht TD280MKIV !), TD316, TD318, TD320, TD321, TD325, TD520, TD521, TD2001, TD3001

Dual Part Number:
241549
Used in Dual Models (without guarantee):
CS461, CS481, CS1236, CS1237, CS1239

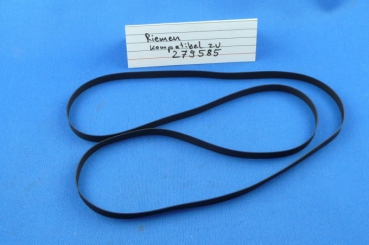

Belt (Replica):
279585 "S", special made according Dualfred specifications
Substitute for Dual Part Number:
279585
Used in Dual Models (without guarantee):
CS750, CS750-1, CS5000, Golden 1, Golden Stone, Silver Stone
Description:
The Dual models, listed above, are very sensitive regarding belt tension and belt material. Therefore we created a belt with dimensions very near to the original Dual dimensions. This is not the case for most of the available replica belts. The belt width is 4mm only, like the original belt. The belt diameter is choosen in a way, that the belt sits just with minor tension at the belt drive diameter of the platter. Like it was with the original Dual belt. Also the belt thickness is only 0.5mm, like the original belt. This creates very low friction losses during operation.

So this belt is the best choice, if you would like to reach the performance values as originally planned from Dual.den Stone

Belt (Replica):
261921 "S", special made according Dualfred specifications
Substitute for Dual Part Number:
261921
Used in Dual Models (without guarantee):
CS130, CS505, CS505-1, CS505-2, CS505-3, CS505-4, CS506-1 (not CS506!), CS508, CS522, CS528, CS1254, CS1256, CS1257, CS1268
Description:
For many years, the "origial belts" for a Dual 505-4 were produced out of the original specification. They were much thicker than the original belts in the above listed models. The belt thickness has increased to 0.8mm, which creates much higher belt tension as originally planned. This stresses the motor and platter bearing and resuls also in higher wow and flutter values.

Therefore we created our own belt replica, according to the old belt specifications from Dual. The belt thickness is back to the original 0.6mm, which makes the belt much more flexible. Belt tension is signifficantly reduced. This creates less forces to the bearings and improves the wow and flutter values as well. Also the belt switching mechanism works more reliable with this belt.

So this belt is the best choice, if you would like to reach the performance values as originally planned from Dual.

Dual Part Number:
220971
Used in Dual Models (without guarantee):
CS1211, CS1214, CS1215,  with 4-Pole-Motor 60Hz!

Dual Part Number:
232896
Used in Dual Models (without guarantee):
CS1220, CS1224, CS1234, with 2-Pole-Motor 50Hz
